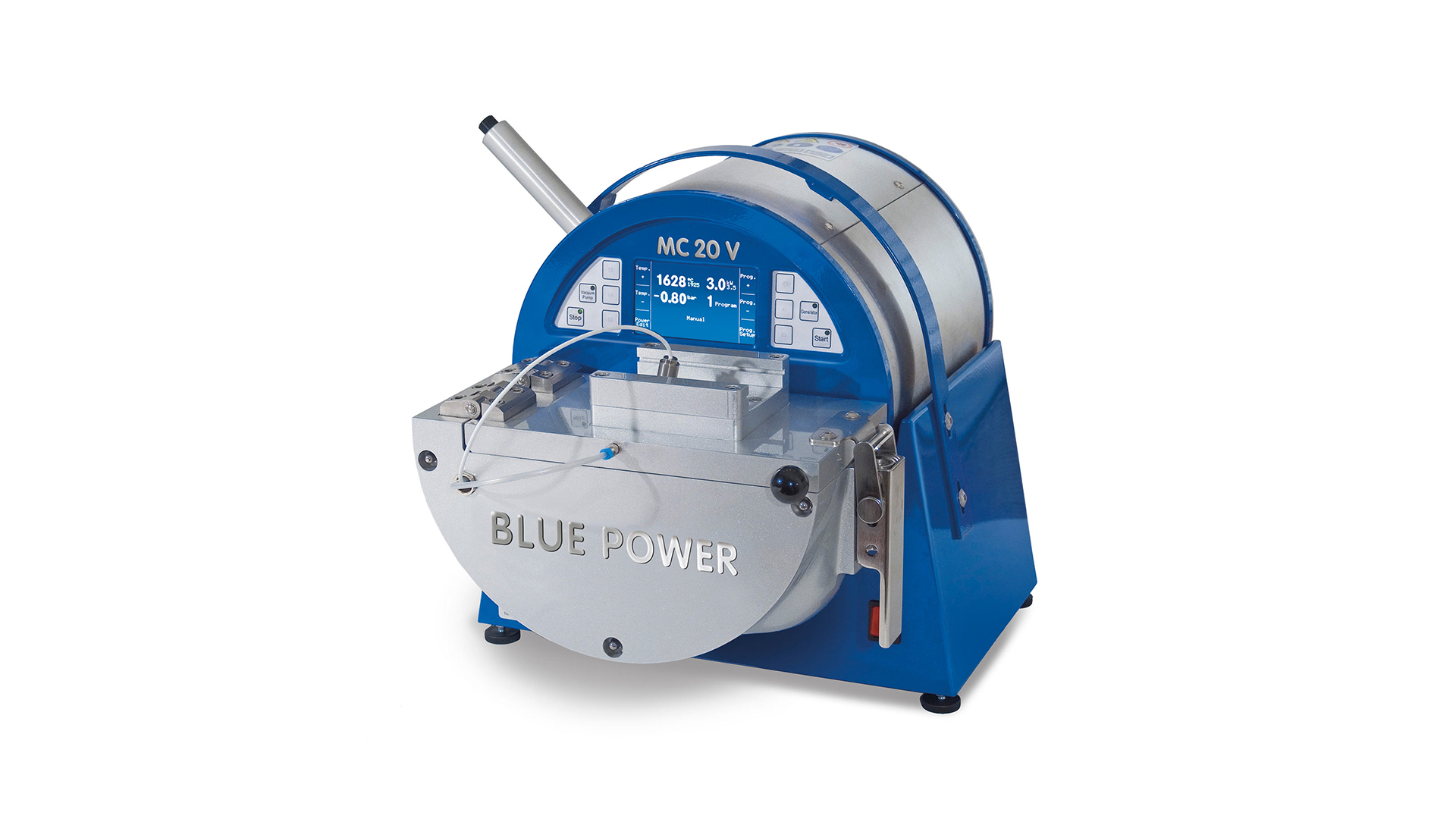

MC 20 V with vibration technology
The MC 20 V is designed based on the same tilting principle as the MC 16. However it is systematically designed for intricate casting projects in continuous operation in larger foundries.
The new 2,000°C MC 20 V tabletop casting machine:
cutting-edge technology in the most compact space.
- Very easy and safe to use, short implementation time
- Excellent price-performance ratio
- 3,5 kW induction generator for quickly reaching the melting temperature
- Thorough through-mixing of molten metals using low-frequency induction tuning
- Melting under vacuum or inert gas to prevent oxidation
- Top quality form filling using overpressure of up to 3 bars (casting under vacuum also possible)
- Economical consumables
Latest generation generators
The MC 20 V is equipped with a latest generation induction generator, developed especially for this housing design and with high operating efficiency. Convenient, high precision control is provided via a new operating system, with an LCD display, full text display and program control.
Award-winning vibration technology – unique in its class
For the first time, our multi-award winning and patent-pending vibration system is now available in a compact casting machine. Using vibration when casting ensures better form filling, creating casts with greater, more consistent densities, higher elasticity and greatly reduced porosity. Vibration technology is a compelling alternative to the frequently used and relatively delicate centrifugal systems, especially when casting platinum or palladium.
Data Overview of MC 20 V
■ standard equipment, ○ optional, - not available
| MC 16 | MC 20 V | MC 60 V | MC 100 V | |
|
Power
|
||||
| Power max. / electrical connection | 3,5 kW (230v single phase) | 3,5 kW (230v single phase) | 3,5 kW (230v single phase) | 8 kW (3x400v) |
| Temperature max. | 2000° C | 2000° C | 1300° C | 2000° C |
|
Capacity
|
||||
| Crucible Volume | 100g Au 18 ct 110g steel 200g Pl | 100g Au 18 ct 110g steel 200g Pl | 450g Au 18 ct 300g Ag 935 |
450g Au 18 ct 250g steel 500g Pl |
| For use of molds | up to ø 30/50/65/80 mm x 80 mm h | up to ø 30/50/65/80 mm x 80 mm h | up to ø 80/100 mm x 120 mm h | up to ø 80/100 mm x 120 mm h |
|
Operation and Control
|
||||
| Control system | by LCD-display, full text readout | by LCD-display, full text readout | by LCD-display, full text readout | by LCD-display, full text readout |
| Automatic vacuum function | ■ | ■ | ■ | ■ |
| Automatic overpressure function | ■ | ■ | ■ | ■ |
| Casting also under vacuum only | ■ | ■ | ■ | ■ |
| Vacuum or overpressure after casting | –1 up to +2 bar | –1 up to +3 bar | –1 up to +2 bar | –1 up to +3 bar |
| Function washing by inert gas | ■ | ■ | ■ | ■ |
| Vibration system | - | ■ | ■ | ■ |
| Supply: cooling water, inert gas argon or nitrogen | ■ | ■ | ■ | ■ |
| Temperature measurement/control | ■ up to 1.300° C, ○ up to 1.600° C | ■ up to 2000° C | ■ up to 1300° C | ■ up to 2000° C |
| Temperature measurement equipped with an optical pyrometer | - | ■ | - | ■ |
| Temperature measurement equipped with a dual wave pyrometer | - | ○ | - | ○ |
|
Quality Assurance
|
||||
| RS 232, Ethernet, USB interface, diagnostic system | ■ | ■ | ■ | ■ |
| GSM-modem for remote service | ○ | ○ | ○ | ○ |
|
DMS
|
■ | ■ | ■ | ■ |
| InduthermCloud | ○ | ○ | ○ | ○ |
| iThermControl | ○ | ○ | ○ | ○ |
|
Accesories
|
||||
| Vacuum investment mixer Indumix 2+ | ○ | ○ | ○ | ○ |
| Vacuum investment mixer Indumix 3+ | ○ | ○ | ○ | ○ |
| Furnace AK 20 | ○ | ○ | ○ | ○ |
| Furnace AK 50 | ○ | ○ | ○ | ○ |
| Sand blasting cabinet | ○ | ○ | ○ | ○ |
| Vacuum pump up to 8 m³ /h | ○ | ○ | ○ | ○ |
| Vacuum pump up to 21 m³ /h | - | - | ○ | ○ |
| Floor unit | - | - | - | ○ |
| Water chiller | ○ | ○ | ○ | ○ |
Other Advantages of MC 20 V
Find out more about MC 20 V
Mini Casting Systems
All jewellery designers have waited a long time for this innovation: a compact casting system for small studios, with which high-quality casts can be made economically. We have now launched this kind of casting system in different versions:
The MC 16 for the very fast and uncomplicated casting of single models in high quality and every metal, even in steel or platinum. Wth its LCD Display the handling is very easy although by having a programm control.
The MC 60 V for the production of smaller casting trees in gold, silver and other special jewellery alloys, aluminium, copper and other metals.
The MC 20 V with the Indutherm vibration system, programm control and LCD-display for high quality jewellery casting especially in platinum, palladium or steel.
The MC 100 V also with the Indutherm vibration system, programm control and LCD-display for the production of larger casting trees particularly in platinum, palladium or steel.
In order to make the step into the world of casting as simple as possible, we also offer the complete equipment.
A complete casting system covering just a few square feet:
On the table on the left: Vacuum investment machine for bubble-free mixing of the investment compound and filling of the flask. The integrated vibrator eliminates any possible airlocks. The 1100°C furnace for melting out the wax and burn-out the form. Mini casting machine, here the MC 20 V. Sand blasting cabinet for easy removal of plaster.
-
MC 16
The basic model
- Perfectly suited for small castings and small series
- Minimum material consumption – a thimble may be the right measure
- 3.5 KW induction heating for fast heating and high maximum temperature
- Even for the casting of steel and platinum
- Fast process time thanks to short heating period of the flasks
- The MC 16 mini casting machine is very easy to use
-
MC 20 V
The new 2,000°C MC 20 V tabletop casting machine:
cutting-edge technology in the most compact space.- Very easy and safe to use, short implementation time
- Excellent price-performance ratio
- 3,5 kW induction generator for quickly reaching the melting temperature
- Thorough through-mixing of molten metals using low-frequency induction tuning
- Melting under vacuum or inert gas to prevent oxidation
- Top quality form filling using overpressure of up to 3 bars (casting under vacuum also possible)
- Economical consumables
-
MC 60 V
The Table Top Casting Machine MC 60 V
The compact solution for small series casting in gold, silver and other special jewellery alloysThe MC 60 V has been developed with the user in mind for whom the MC 16 is too small but a simple machine from the large VC series (e.g. the VC 400) is too big or requires too much manual operation. This small high-performance casting machine is ideal for smaller production quantities and can be used for jewellery alloys such as gold, silver, copper and bronze, as well as for alloys of brass and aluminium. Thanks to the vacuum and overpressure functions and the many automatic control features, the machine provides first class castings with little work – suitable for “beginners”.
More about MC 60 V -
MC 100 V
The new 2,000°C MC 100 V tabletop casting machine:
cutting-edge technology in the most compact space.- Very easy and safe to use, short implementation time
- Excellent price-performance ratio
- 8 kW induction generator for quickly reaching the molten temperature
- Thorough through-mixing of molten metals using low-frequency induction tuning
- Melting under vacuum or inert gas to prevent oxidation
- Top quality form filling using overpressure of up to 3 bars (casting under vacuum also possible)
- Economical consumables
Equipment forthe MC-Series
Vacuum Investment Machine:
adjustable speed, timer, vibrator
Furnace:
temperature max. 1050° C, temperature pre-selection
furnace interior size: 300 x 300 x 200 mm
Sand blasting cabin:
air pressure: 270 l/min at 10 bar, 150 l/min at 5 bar
connection for suction system
foot switch for adjusting pressure
