(V)CC-Series


More flexibility, lower costs

With an Indutherm continuous casting machine, you can produce your own alloys or semi-finished products in different shapes and sizes in the shortest time:

  • Wires or bars up to ø 90 mm
  • Sheet and strips, e.g. ring production, for stamping and pressing
  • Tubes, perfect as basic material for cutting in sections for wedding ring production
  • Granules and flakes

The use of a continuous casting machine can reduce your investment for material in storage considerably. Your processes will get faster, more flexible and more efficient. Our continuous casting machines are equipped with a number of unique details which substantially improve the quality of the semi-finished material, e.g. the unique vacuum system or the QUATTRO DRIVE drawing system. For details see next page. With a wide range of optionally available equipment the versatility of these machines may be enhanced even more.

Granulation tank and flake kit

The easy to install granulation tank and the flake kit make each CC machine even more versatile.

Sintering kit

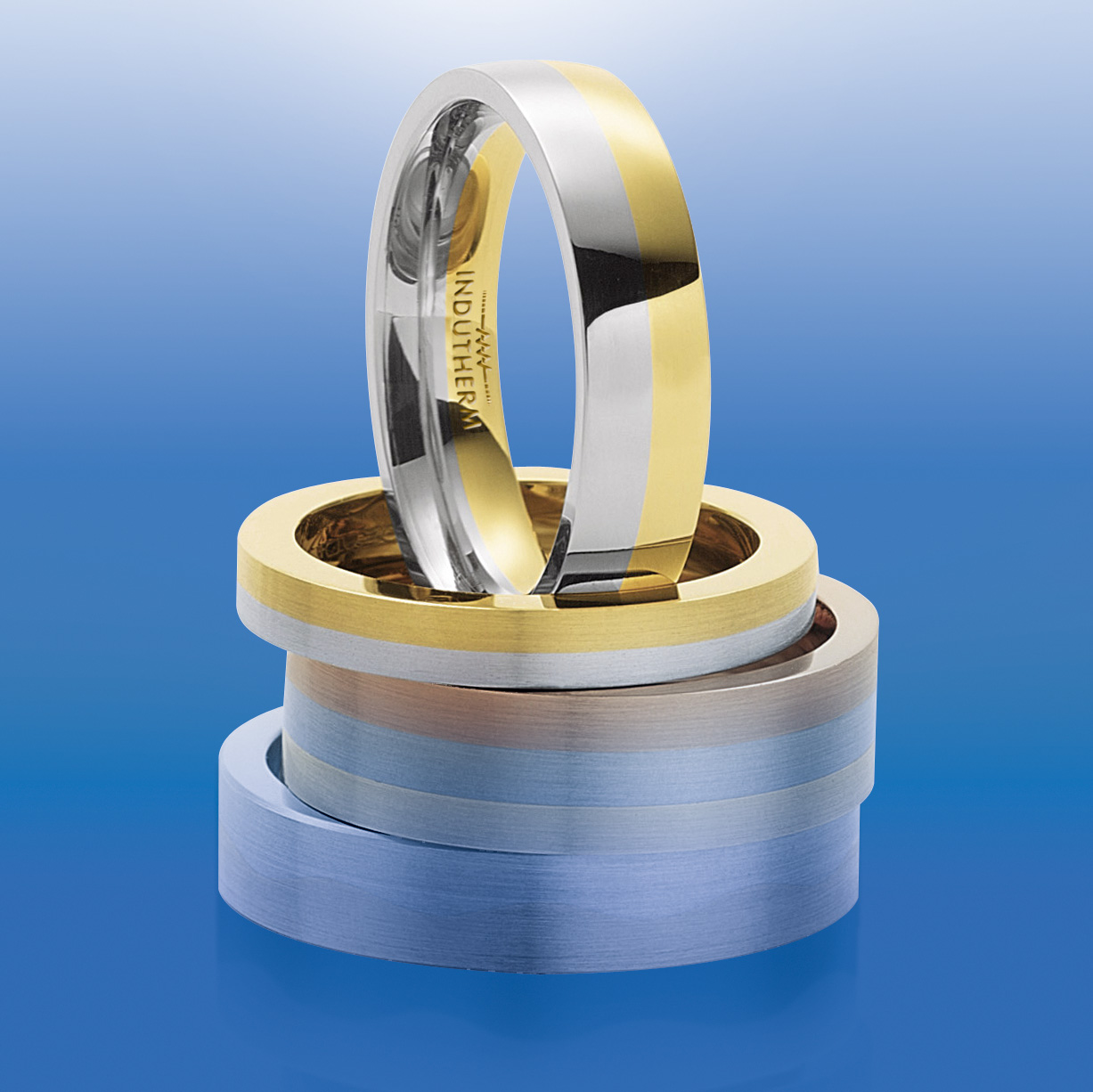

Sintering/diffusion bonding is the optimum process for producing multi-coloured rings, mostly sold as wedding rings, or bracelets. Metals are processed under pressure and at temperatures below the solidification point. The pressure is generated pneumatically and not mechanically via a threaded spindle. This means that there is no risk of graphite parts breaking as a result of heat expansion. The fusion between layers has the same durability as the metal itself. The sintering kit is ideal for the occasional diffusion bonding job and for smaller series production.

Bar casting kit

The bar casting kit is developed for casting defined quantities of your alloy into ingot molds or into any other molds. The program control recognizes the applicated equipment and provides the suited parameter settings on the display

Unique vacuum system

For highest quality of semi-finished material:

To reduce the risk of oxidation during melting and during drawing, we focus on avoiding oxygen contact and on fast reduction of the temperature of the drawn material.

Features for fast temperature reduction:

  • Cooling water temperature measurement and automatic flow control
  • Optical temperature measurement in the center of the die
  • Die cooler
  • Additional secondary cooling system at the outlet

Features to avoid oxygen contact:

  • Vacuum system for the melting chamber – uniquely available for Indutherm continuous casting machines (VCC versions)
  • _ Feeding system for re-charging without oxygen contact and with constant vacuum in the melting chamber
  • Inert gas system for the melting chamber
  • Inert gas flushing at the die
  • Optical die temperature measurement
All these measures are ideal especially for alloys containing copper such as red gold or for silver as these materials tend to oxidise easily.

Quattro Drive System

On each of our continuous casting machines, the material is drawn off by motor driven and pneumatically pressed-on feed rolls. A bar end control sensor stops automatically when the molten material is spent.

The optional Quattro Drive drawing unit with four instead of two motor driven feed rolls produces smoother tubes and sheeting with reduced marks of transportation.


Numerous options for targeted produktion of semi-finished parts

Bending unit
Using the bending unit attached to the bottom drawer, the material can be bent without mechanical force on the die.

Hydraulic cutter
The hydraulic cutter is suited for cutting wires into pre-defined sections.

Continuous casting and cutting to size in one operation!

Flying saw for shorting during drawing

The swiveling electric saw (large picture above) moves synchronously with the drawn bar or tube. This way you can cut your material into defined sections during drawing. You don’t need to stop the continuous casting process when maximum length is reached.


Data Overview of (V)CC-Series

■ standard equipment, ○ optional, - not available

CC 400 CC 1000 VCC 1000 CC 3000 VCC 3000 CC 12000 VCC 12000
Power
Temperature max. 1500° C 1500° C 1500° C 1500° C 1500° C 1500° C 1500° C
Power max. / electrical connection 15 kW (3x400 V)|15 kW (3x208 V) 20 kW (3x400 V) 20 kW (3x400 V) 30 kW (3x400 V) 30 kW (3x400 V) 40-60 kW (3x400 V) 40-60 kW (3x400 V)
Capacity
Crucible Volume ■ 245 ccm = 3,6 kg Au 18 ct / 2 kg Cu*
○ 386 ccm = 5,8 kg Au 18 ct / 3,3 kg Cu*
○ 700 ccm =10,5 kg Au 18 ct / 6 kg Cu*
1,5 l = 4 kg Al / 12 kg Cu * 1,5 l = 4 kg Al / 12 kg Cu * 3,4 l = 8,5 kg Al / 25 kg Cu * 3,4 l = 8,5 kg Al / 25 kg Cu * 12 l = 30 kg Al / 90 kg Cu * 12 l = 30 kg Al / 90 kg Cu *
Wire production up to Ø 20 mm** Ø 40 mm** Ø 40 mm** Ø 70 mm** Ø 70 mm** Ø 70 mm** Ø 70 mm**
Tube production up to Ø 45 mm** Ø 65 mm** Ø 65 mm** Ø 90 mm** Ø 90 mm** Ø 90 mm** Ø 90 mm**
Sheet production ■ 50 x 8 mm
○ 60 x 8 mm
100 x 10 mm 100 x 10 mm 130 x 40 mm 130 x 40 mm 130 x 40 mm 130 x 40 mm
Operation and Control
Control system by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout
Programs 100 100 100 100 100 100 100
Vacuum/Inert gas overpressure - - - -
Neutral inert gas atmosphere
Optical die temperature measurement
Die cooler with protective gas flushing
Secondary cooler / water collection system
End bar sensor
Quality Assurance
RS 232, Ethernet, USB interface, diagnostic system
Data printer
GSM-modem for remote service
DMS
InduthermCloud
iThermControl
Accesories
Quattro drive drawing unit
Sintering / diffusion bonding kit - - - - - -
Granulation tank
Granulation tank with flake option
Bending-unit
Coiling equipment -
Simultaneous casting of several wires - ○ 3 wires*** ○ 3 wires*** ○ 5 wires*** ○ 5 wires*** ○ 5 wires*** ○ 5 wires***
Flying saw
Pneumatic cutter
Vacuum pump
Water chiller
Water collection system

* Liquid metal up to top level of the crucible – other volumes on request.
** Special dimensions or profiles on demand
*** not in combination with Quattro Drive

All machine descriptions and technical data published on this site make no claim to be complete. They are subject to change and therefore they are not basis of contract.

Other Advantages of (V)CC-Series

The bar casting kit is developed for casting defined quantities of your alloy into ingot molds or into any other molds. The program control recognizes the applicated equipment and provides the suited parameter settings on the display.

Sintering/diffusion bonding is the optimum process for producing multi-coloured rings, mostly sold as wedding rings, or bracelets. Metals are processed under pressure and at temperatures below the solidification point. The pressure is generated pneumatically and not mechanically via a threaded spindle. This means that there is no risk of graphite parts breaking as a result of heat expansion. The fusion between layers has the same durability as the metal itself. The sintering kit is ideal for the occasional diffusion bonding job and for smaller series production.

The easy to install granulation tank makes each CC machine even more versatile. CC 400 and VCC 400 are furthermore offering a third application possibility: with the sintering kit you can use this machine for diffusion bonding,e.g. for the production of multi-layer rings.

null

CC/VCC SERIES CONTINUOUS CASTING MACHINES – OUR 5 IN 1 MULTITOOLS

Change Functions within 5 Minutes!

(Vakuum) Continuous Casting of Wire, Sheet and Tubes

with numerous options for cutting or sawing into sections during casting, for bending or coiling. VCC series with inert gas/vacuum system for the melting chamber

Produktion of Granules

with the easy to install granulation tank

Produktion of Flakes

for sintering/diffusion bonding or refining applications

Produktion of Multi-Layer rings and Bracelets

with the optional sintering/diffusion bonding kit

Casting into Ingot Molds

or any other molds
